FG18OM16–0,6/1 kV

B2ca-s1a,d1,a1

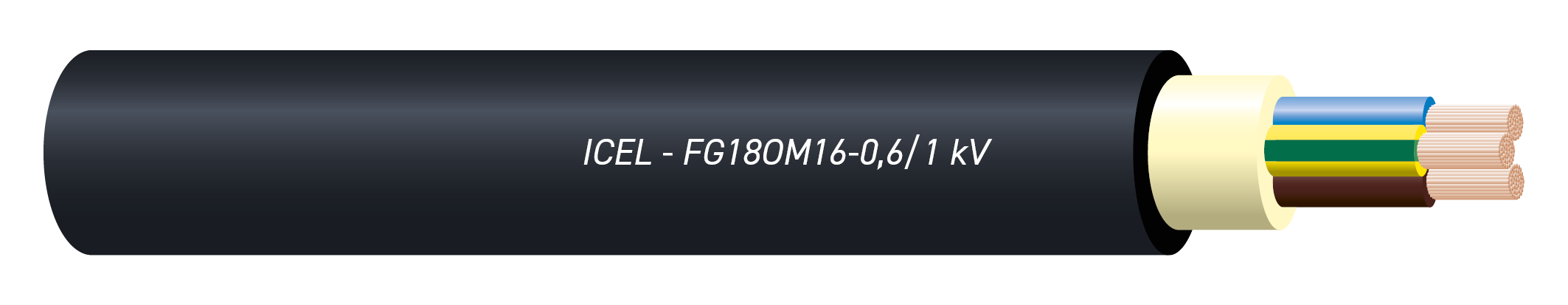

Multicore power cables, rubber insulated (G18), M16 thermoplastic sheathed, with flexible conductors for fixed installation. Fire retardant with low emission of smoke and toxic and corrosive gases and fumes (non-toxic - halogen-free – LS0H).

Suitable for bundle installations in environments with high risk in case of fire for the high population density or for the long time for displacement, or for the high damage to animals and things such as, for example, air terminals, railway stations, harbour stations, subways, road and rail tunnels having fire reaction class B2ca-s1a,d1,a1 (for cables installed in railway tunnels, which comply with the UERegulation 1303/2014, refer to the requirements given by the regulation itself).
Cables suitable for indoor or outdoor environments, even wet, for fixed installation in laying air, in pipes or ducts, on masonry, metal structures or suspended; buried installation allowed.
Further instructions and warnings for the use of these cables are given in CEI 20-67 Standard.

.
.
